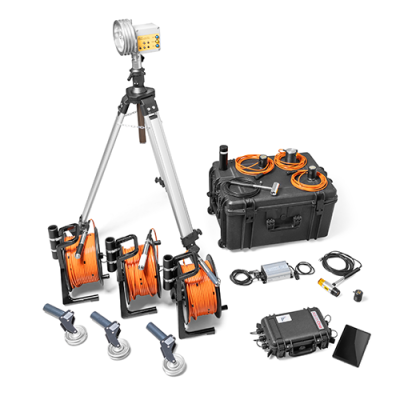

Solgeo ALL-IN-ONE Non-Destructive Testing Tool

Description

ALL IN ONE
CONTACT KIT / MCHA KIT / PIT KIT

The All-in One system is a robust and reliable device with several dedicated piezoelectric sensors and probes.
The All-in One features a multichannel A/D card and selectable sampling rates from 10 kHz to 6.25 MHz (up to 12.5 MHz single-channel).

All acquired signals are displayed, calculated, and stored directly by the supplied pre-in-standard MCH-sonic software. The All-in One system connects to your tablet via WiFi and USB.

Product Features

• Modular system with the possibility of using different probes
• Cross hole with 3 simultaneous paths: drastic reduction of acquisition times
• Intelligent probes, including signal generation and active preamplification
• Distance between pipes up to 3 m
• Acquisition unit with high dynamic range and low electronic noise
• Ultrasonic contact probes (55-20 kHz), hammer, dedicated software
• Robust and reliable equipment
• Ecometric method, processing software included
• Fully complies with the main guidelines of international standards
• Calculation of the tensile strength of chains through the analysis of the vibration produced

Applications

• Characterization of concrete and stone materials on site and in the laboratory
• Cross-hole analysis of concrete piles and diaphragm walls
• Pile analysis using the echometric method and mechanical admittance
• Verification of the stress state of structural chains
