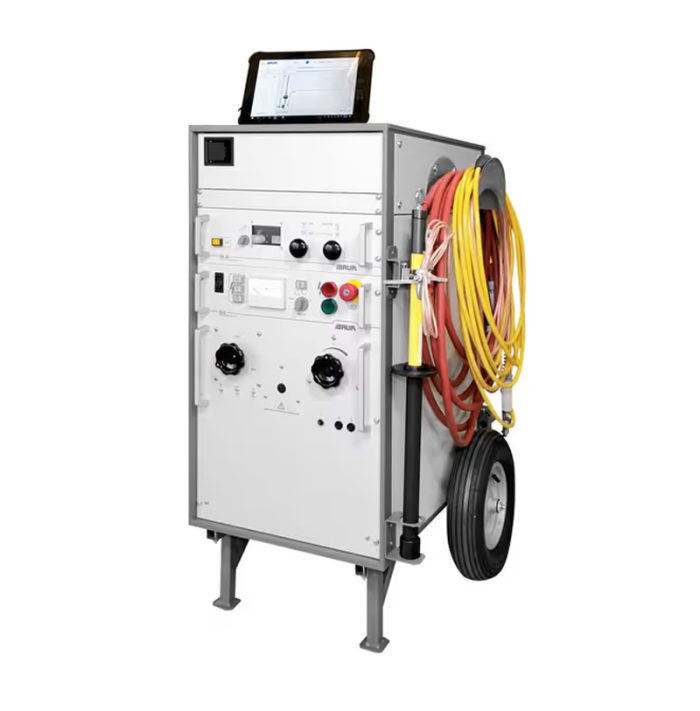

The portable cable fault location system, Syscompact 400 portable, is used for the pre-location and pin-pointing of faults on power cables. It is ideal for mobile use, without the need for permanent installation in a vehicle.

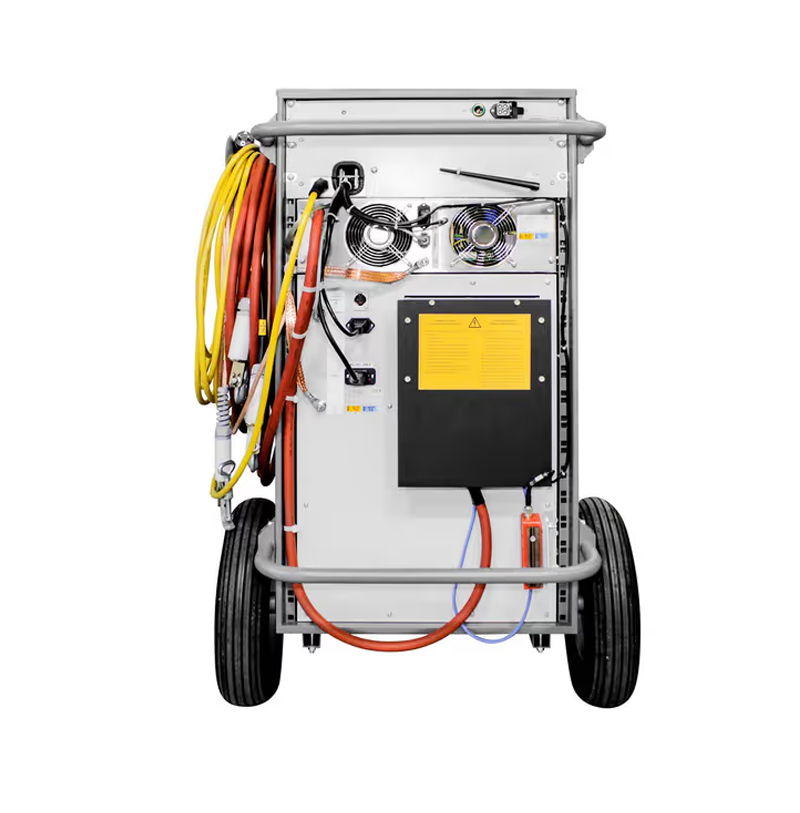

BAUR – Syscompact 400 portable
Description
Fault location with Syscompact 400
Portable system for pre-location and pin-pointing
↗ Fast and reliable
↗ Maximum safety during application
↗ High-performance surge voltage generator
↗ Proven fault pre-location methods
The portable cable fault location system, Syscompact 400 portable, is used for the pre-location and pin-pointing of faults on power cables. It is ideal for mobile use, without the need for permanent installation in a vehicle.
The system can be equipped with a range of surge voltage generators, which feature an automatic surge mode. The new IRG 400 time domain reflectometer can be controlled via a tablet or laptop. With the simple menu navigation and integrated location methods, cable fault location with the Syscompact 400 is fast and precise.
The IRG 400 can be operated remotely, thanks to the wireless connection of the control unit via Wi-Fi. This makes for easy and convenient performance and evaluation of the TDR measurement
Functions
- Pre-location
- TDR: Time Domain Reflectometry
- Step TDR
- SIM/MIM: Secondary/multiple impulse method with surge voltage or in DC mode
- ICM: Impulse current method
- Decay method (option)
- Pin-pointing*
- Acoustic pin-pointing
- Step voltage method for pin-pointing cable sheath faults
- DC voltage testing up to 32 kV
Features
- Surge energy up to 1,100 J (optionally up to 2,050 J)
- Long service life of the electrodes thanks to optimized physical properties
- High reliability of the spark gap
- Easy maintenance by trained personnel on site
- High system availability due to reduced downtimes
- Intuitive user interface in multiple languages
- Control of measurement via
- Tablet with BAUR BUI-F app or
- Laptop with BAUR Software 4
- Length-dependent gain for better display of remote events with the BAUR BUI-F app
- Greater convenience, as the TDR measurement can be controlled via Wi-Fi
- Integrated CAT IV/600 V separation filter for TDR measurements on live cables
- No special vehicle required for transportation
