Feeling the Heat?
The replacement of mercury thermometers needs to be properly through, to avoid harming data set homogeneity.
FAIRMOUNT – Intellisense
Description

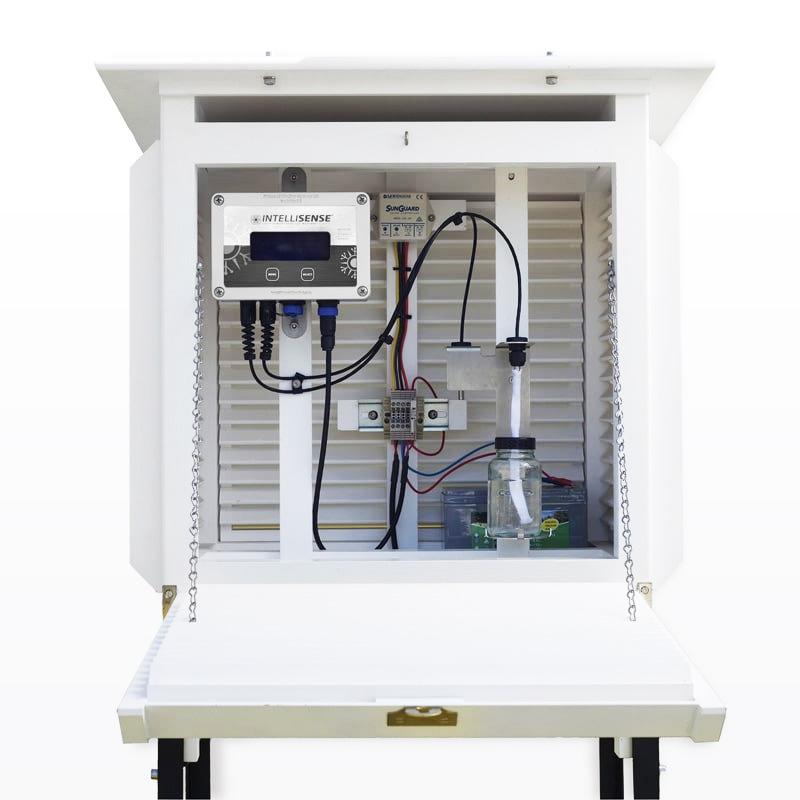

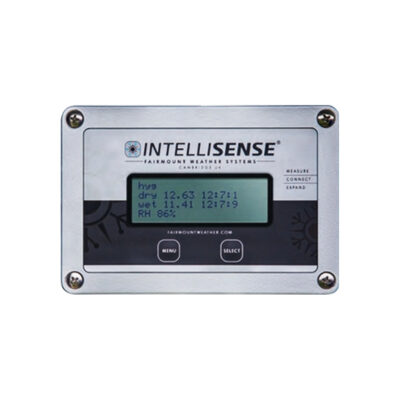

INTELLISENSE
The No. 1 alternative to mercury thermometers
System Features:
- Single to Multiple Units via CANBUS interconnection
- USB/RS232/RS422 Serial Connection via Intellisense® Master unit
- Multiple connections via IoT Network
- Application firmware upgrades, user enabled via resident bootstrap
- Different applications can co-exist
- Applications communicate transparently to the PC GUI which archives & displays unique data sets**
- Aligns with the requirements of the WMO CIMO Guide on Temperature and Barometric measurements making Intellisense® an ideal choice when replacing mercury Thermometers and Barometers
- One Intellisense® master module will report Air Temperature, Relative Humidity, Maximum and Minimum Temperature and Barometric Pressure replacing conventional mercury Psychrometric, Maximum and Minimum Thermometers & mercury Barometers and allows connection of pulse counting rain gauge.
- Allows connection of users existing tipping bucket rain gauge.
** When connected to PC or using Telemetry option
Intellisense Specification:
Temperature Measurement:
- Resolution : 0.01 degrees C
- Accuracy and repeatability : Better than 0.1 degree C
- Up to 5 adjustment points prior to Calibration
- Fast response Dual PT100 sensors
Barometric Measurement:
- Resolution : 0.01 hPa
- Accuracy and repeatability : Better than 0.3 hPa
- Offset correction and MSL (Mean Sea Level) applied in conditions set up.
- Piezoresistive SMT module
