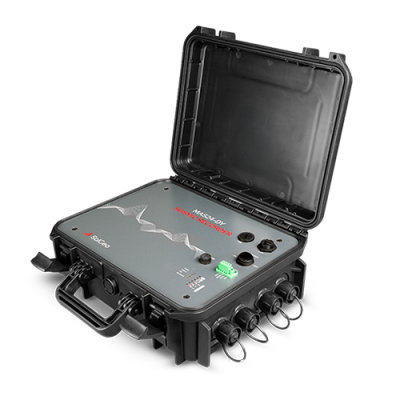

MAS 24DY Portable Seismic Acquisition Unit – High-Resolution Field Recorder

The MAS 24DY Portable Seismic Acquisition Unit is a rugged, high-performance data acquisition system designed for environmental seismic monitoring, civil and industrial vibration analysis, and temporary field deployment in geophysical surveys. Built to meet international standards and engineered for accuracy, durability, and flexibility, it is ideal for projects requiring reliable seismic or dynamic data collection.

Key Features & Capabilities

• High-Resolution Acquisition: 24-bit multi-channel sampling with a dynamic range ≥ 130 dB @ 100 Hz delivers precise and clean seismic signal capture.

• Flexible Sampling & Bandwidth: Sampling rates from 10 Hz to 1 kHz (with higher options available on certain versions) and a bandwidth from DC to 400 Hz support a wide range of vibration and seismic applications.

• Standards Compliant: Designed according to DIN45669-1, DIN4150-3-1, UNI9916, and EN61000-61326-1 guidelines for seismic and vibration monitoring.

• Recording Modes: Supports continuous recording or triggered acquisition with flexible pre- and post-trigger configuration.

• Integrated Storage: 32 GB internal SD memory with optional external USB storage for extended campaigns.

• GPS Synchronization: Built-in GPS receiver ensures accurate time synchronization across channels for networked or multi-station setups.

• Remote Communication: Standard Ethernet LAN connectivity with optional 4G, Wi-Fi, or fiber-optic modules for remote access and data transfer.

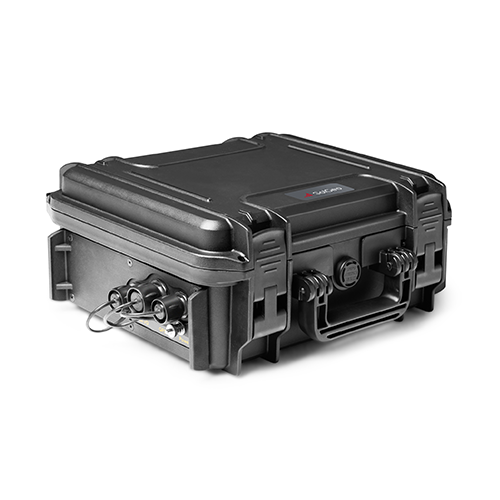

• Portable & Durable: IP65-rated rugged case, internal LiFePO₄ battery with >16 h operation, and a compact form factor make it suited for field use.

Integrated Software & System Support

The MAS 24DY unit is managed through a web-based GUI (SWC) compatible with standard browsers. It works seamlessly with VIBROSOFT™ data processing software and the SOLWEB web platform to enable efficient analysis, reporting, and long-term monitoring networks.

Applications

The MAS 24DY excels in a wide range of practical monitoring scenarios, including:

• Civil and industrial vibration assessment

• Environmental seismic monitoring

• Temporary seismic campaigns for construction and infrastructure projects

• Monument and heritage structure dynamic analysis

• Integration into seismic or microseismic networks
